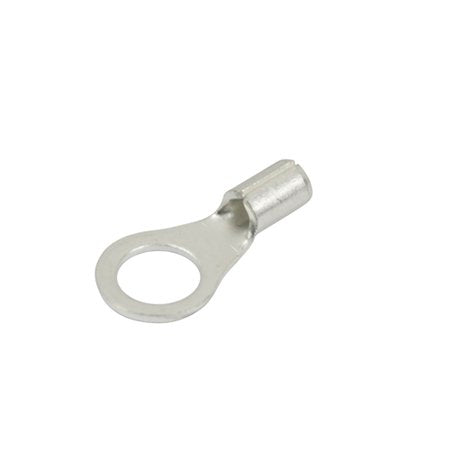

Non-insulated ring terminals are connectors that are used to mate, connect, or terminate a single wire, while allowing a connection to a screw or stud type electrical connection, best suited when special performance or installation characteristics are not needed. The seamed barrel provides electrical contact after crimping and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity, and a tin-plated finish resists corrosion. Non-insulated ring terminals are commonly used in automotive and marine vehicles but can be used in various other electrical applications.
•Use these terminals when special performance or installation characteristics are not needed.
•Non-insulated terminal series is the most economical terminal available.
•Rated to 600 volts maximum, building wire; 1000 volts maximum, 105° C (221° F).
