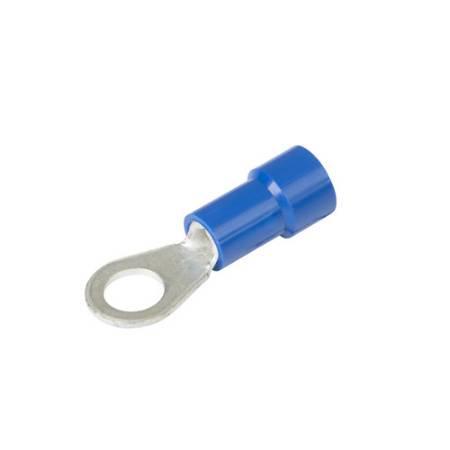

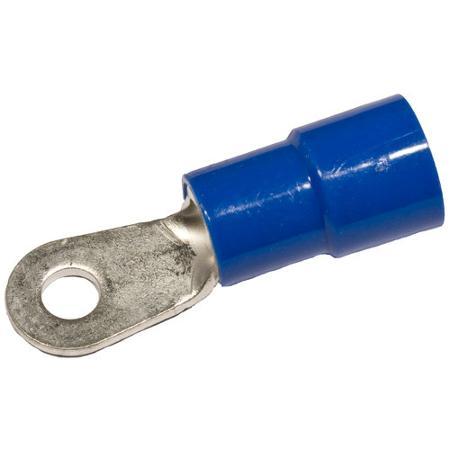

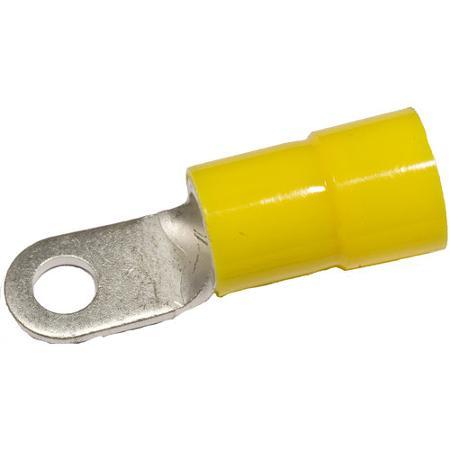

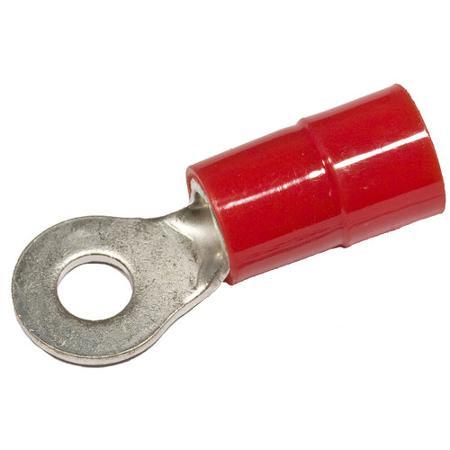

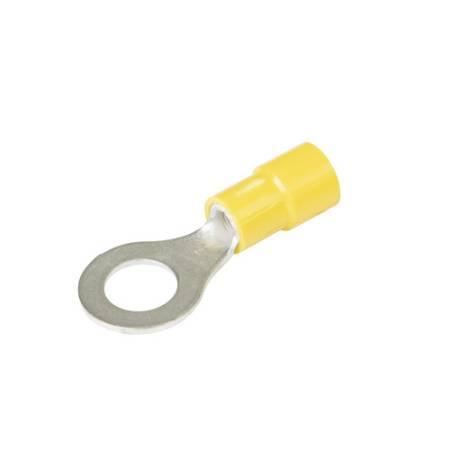

Vinyl Insulated Ring Terminals

A4
  • Sale
  • Regular price $31.59
  • 1 available


Vinyl insulated ring terminals mate, connect, or terminate a single wire. The ring shape of the terminal allows for connection to a screw or stud type electrical application. The terminals are color-coded for quick and easy identification of the wire size required. The seamed barrel provides electrical contact after crimping and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity, and a tin-plated finish resists corrosion. The abrasion-resistant, vinyl-sleeve insulation with stepped design ensures mistake-proof crimping. Vinyl insulated ring terminals are commonly used in automotive and marine vehicles but can be used in various other electrical applications.

•PVC insulation sleeve is securely fastened to barrel.

•Funnel entry is formed into inside of insulation to allow for easier wire insertion.

•Industry standard color-coding indicates wire range.

•Rated to 600 volts maximum, building wire; 1000 volts maximum, 105° C.
