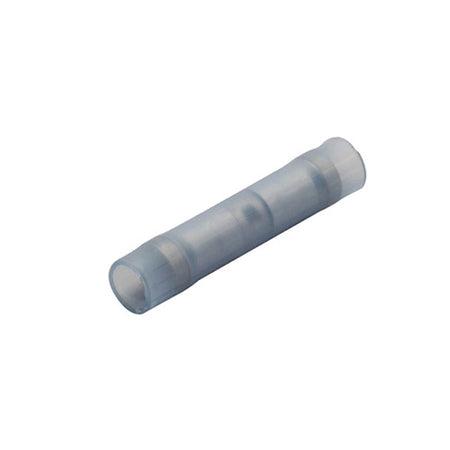

Nylon Insulated Flare Funnel Butt Splice Terminals

B5B
  • Sale
  • Regular price $20.39


Terminal is color-coded for quick and easy identification of the wire size required. The seamed barrel provides electrical contact after crimping and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity, and a tin-plated finish resists corrosion. The abrasion-resistant, nylon-sleeve insulation with stepped design ensures mistake-proof crimping.

•Nylon insulation material is molded onto brazed seam barrel and is resistant to deformation.

•Funnel entry is formed into inside of insulation to allow for easier wire insertion.

•Industry standard color-coding indicates wire range.

•Rated to 600 volts maximum, building wire; 1000 volts maximum, 105° C (221° F).
