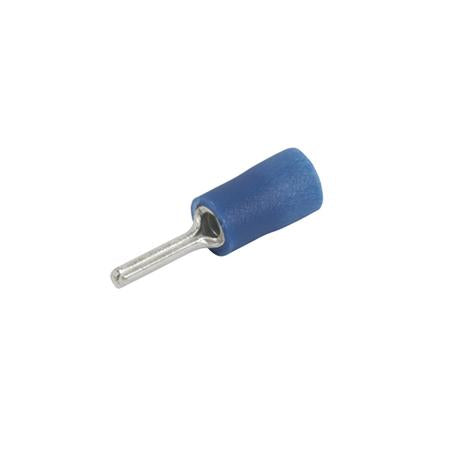

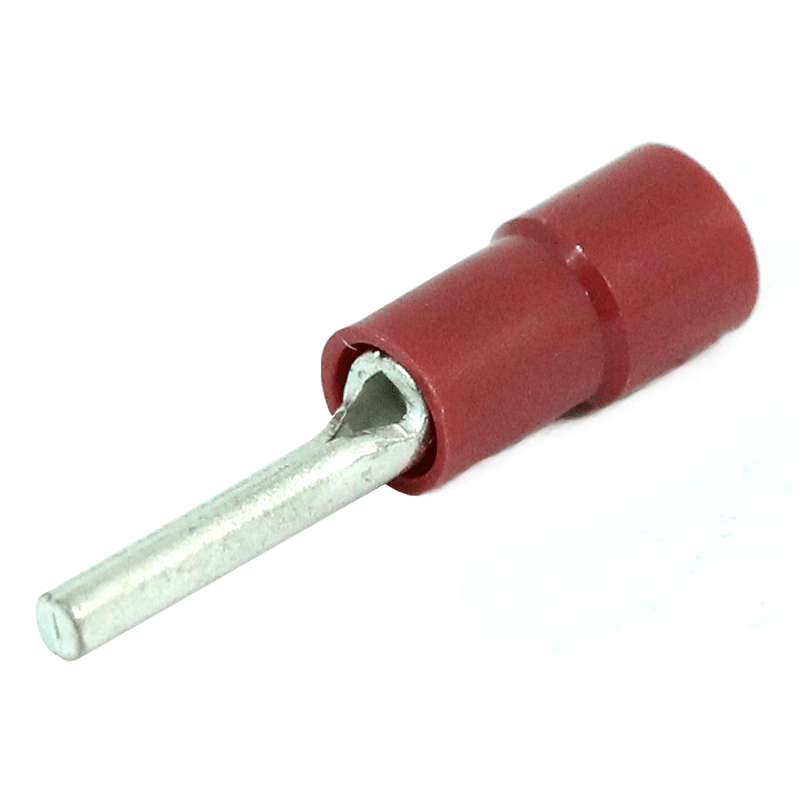

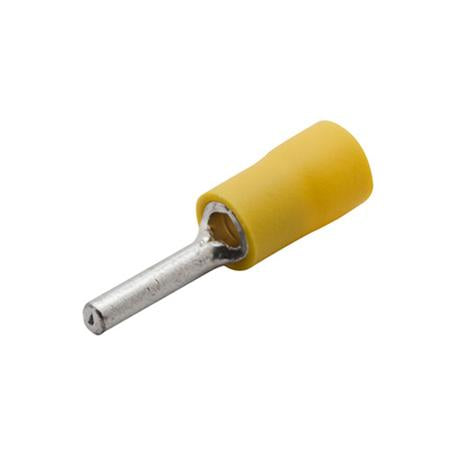

Vinyl insulated pin terminals offer quick, easy connections. The vinyl material acts as an economic insulation type, while the funnel entry design forces wire strands into the terminal barrel. These terminals simplify the insertion of stranded wire by preventing wire strand fold back, assuring proper electrical contact and a stronger connection than just wire alone. They are commonly used in automotive and marine vehicles, but can also be used in other applications that utilizes wire to transfer electrical current.
•PVC insulation sleeve is securely fastened to barrel.
•Funnel entry is formed into inside of insulation to allow for easier wire insertion.
•Industry standard color-coding indicates wire range.
•Rated to 600 volts maximum, building wire; 1000 volts maximum, 105° C.
