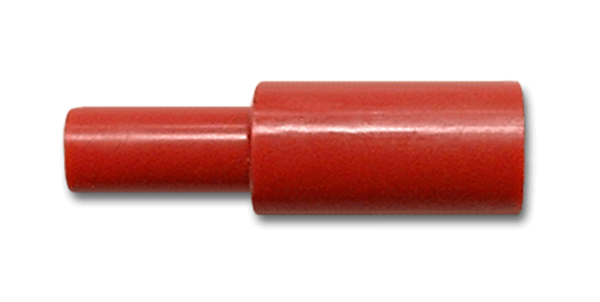

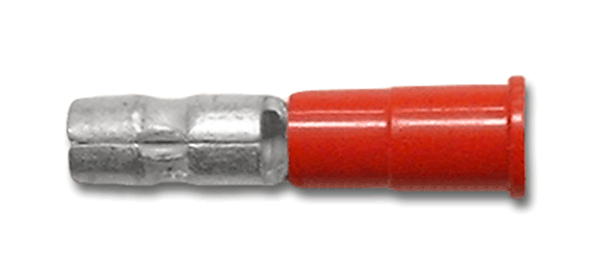

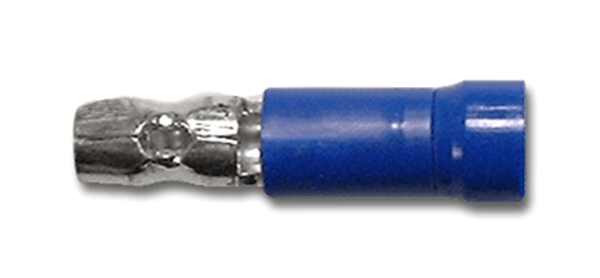

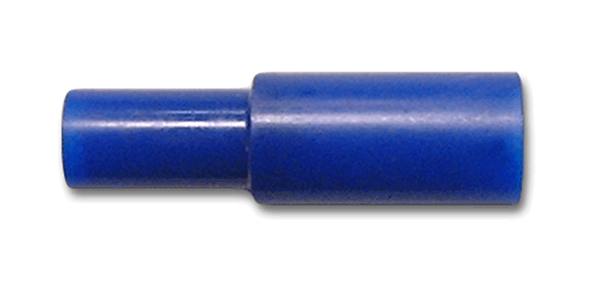

Vinyl insulated bullet connectors are round female and male pole type connectors that mate with each other to connect a wired connection. The vinyl material acts as an economic insulation and the butted seam is the most common type of terminal barrel. Vinyl insulated bullet connectors are used in applications that utilize wire to transfer electrical current.
•PVC insulation sleeve is securely fastened to barrel.
•Funnel entry is formed into inside of insulation to allow for easier wire insertion.
•Industry standard color-coding indicates wire range.
•Rated to 600 volts maximum, building wire; 1000 volts maximum, 105° C.
